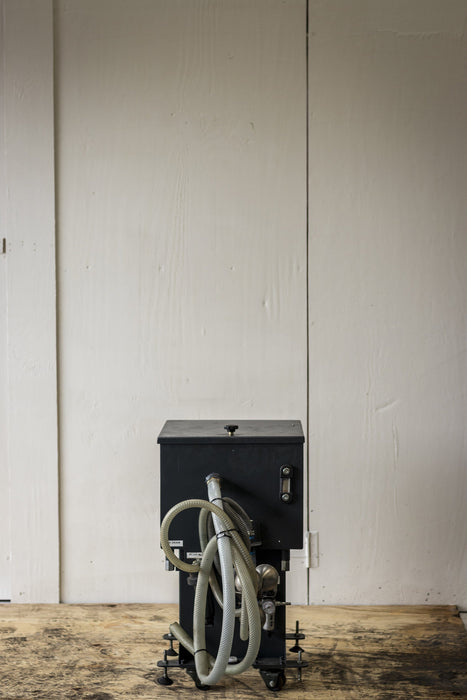

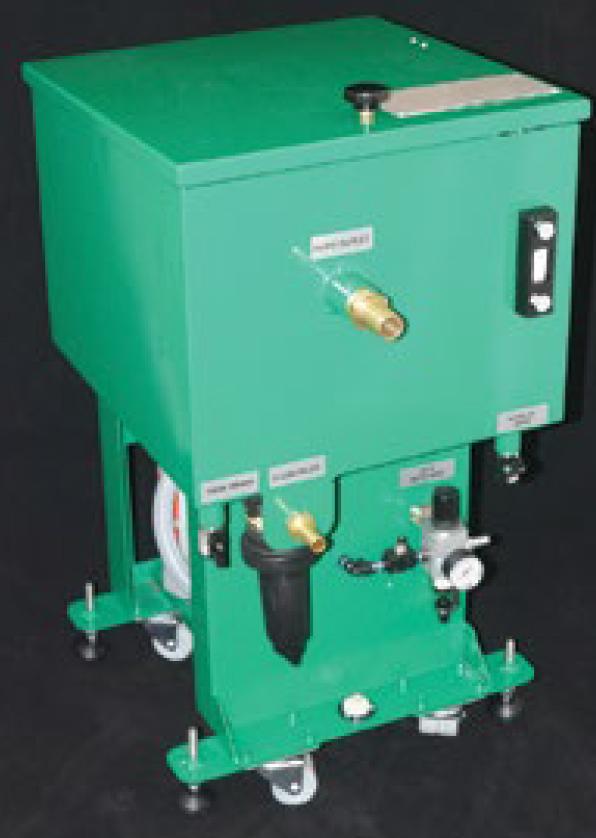

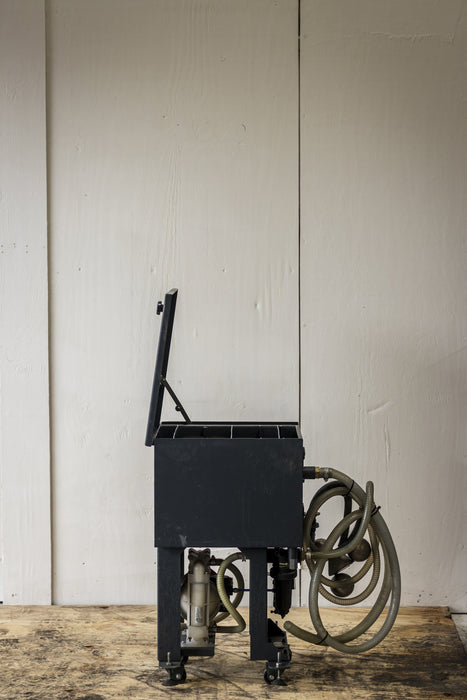

Tramp Oil Separator


By using the PCWS Tramp Oil Separator, according to an independent study, it will improve metalwork fluid life by at least 100%, reducing the need for new coolant. Coolant disposal cost is eliminated and tool life will be increased by up to 25%. Clean coolant does not need replacing and is a much more efficient lubricant, adding to tool life. Since oil contamination is the most common cause of metal working fluid disposal, this system will reduce the need for hazardous waste disposal. Machine efficiency is increased and operator safety is improved, since the PCWS Tramp Oil Separator works with little maintenance attention and without interrupting production time.

The PCWS Tramp Oil Separator not only helps keep your coolant clean but it also helps keep the environment clean. Bacteria grows and feeds on the contaminants in coolant. This bacteria is the leading cause of operator dermatitis and the foul smell associated with rancid coolant. Removing the tramp oil eliminates the food source and the bacteria, providing a safe, healthy and more pleasant environment for the machine operator.

• All steel construction and no internal parts to wear; provides years of continuous
• Positive coolant flow-the Tramp Oil Separator draws coolant into the box at a minimum rate of 2,200 litres per day
• Superior float design – 3-ball float captures the oil where it accumulates most: at the surface of the coolant
• Simple oil separation – a simple weir dam arrangement captures the oil and sends it to a holding tank
• Machine level indicator
• Tramp oil level indicator
• No electrical power required

Technical Data:
Machine size: 432 x 406 x 610mm
Machine weight: 50 kgs
Pump: Air Flo – CPS-MINI. Designed for optimal efficiency at 2.2 litres per minute flow rate
Process rate: 2.25 to 3.4 litres per minute

The PCWS Tramp Oil Separator can be utilised anywhere there are two distinct phases of liquid i.e. oil and water. Successful PCWS Tramp Oil Separator applications include: Machine Tool Coolants, Mop/Wash Water, Compressor Blow Down, Oil Spill Clean Up, Rain Water Run-off, Retention Tanks at Vehicle Wash Stations, Quenching Tanks.

Cleaning Machine Hire

Why not hire our machine at very competitive rates. EMAIL US or call 0161 430 1111 for a bespoke service based on your machine usage (one week service up to a maximum 12 week service package).
